* Application

Biomass Briquetting Plant is for converting agro forestry waste (Bio-mass) to Briquettes (Bio-coal).

* Description of Briquetting Plant ( Jumbo-90)

The Briquetting Plant is a ram type press designed for continuous heavy-duty operation with two load wheels. One of the load wheels acts as a pulley, and driven by the main motor through a flat belt. Forced lubrication is provided by oil lubrication system which gives a longer life to the bushes.

Dry agro - forestry waste as a raw material is fed through the screw conveyor to Kupy by means of vertical screws, with its own-geared motor. It pre-compress and forces the material downward into the feeder box. From the feeder box the material is forced by the Ram through Taper die and due to high pressure & heat, raw material (Biomass) is converted into solid cylindrical briquettes. Finally finished briquettes come out from die holder and passes through natural cooling lines.

During Process lignin content in the raw material (Biomass) is transformed into liquid form & acts as a natural binder. Therefore it is called the Binder less Technology.

Jumbo-90 is flagship model in Biomass briquetting industries. Jumbo-90 gives more production and minimum process cost per MT.

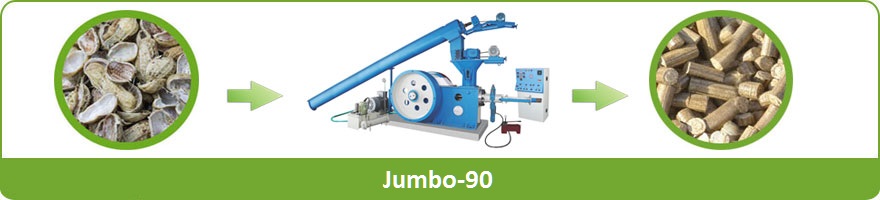

* Biomass briquetting Plant Jumbo-90



* Production Capacity of Biomass Briquetting plant ( Jumbo-90)

Output Production Capacity :  1500 Kg/Hr. *

* Raw material ( Biomass) Specifications

Size of Raw Material :  Up to 20mm
Moisture contain :  Max. 10 %.

* Output Briquettes (Bio-coal) Specification

Briquettes Diameter / Shape :  90 mm ( Cylindrical Shape)
Briquettes Length :  Not fixed ( around 1 Feet)
Output Production Capacity :  1500 Kg/Hr. *

* Production Capacity

Output capacity is depends on the bulk density of Raw Material. So it will vary with different input raw material. It will be 1200 Kg to 1500 Kg/Hr.

* Electricity / Power

Total Connected power Load :  Approx. 93 HP
Practical used Amp. Load :  Approx. 80 - 100 Amp
Power consumption :  Approx. 35 - 40 Unit/MT

* Individual Electric data

Briquetting Main Ele.Motor :  75 HP
Feeding Kupy Ele. Motor :  10HP
Screw Conveyor Ele. Motor :  5 HP
Lubrication System Ele. Motor :  3 HP

* Area & Size

Foundation :  16 Feet x 5 Feet
Machine Room (For one Machine) :  Minimum 25 Feet x 15 Feet
Total Area for Project :  Minimum 1000 M3 or More

* Silent Futures of Radhe Engineering Co. - Biomass briquetting Plant (Jumbo-90)

  • Standard genuine parts with applicable MOC and process
  • Heavy duty Die holder to max binding Output Briquettes
  • Temperature sensors to all bushes to prevent life of bushes.
  • Best design for kupy and worm for feeding up to feeder Box.
  • Standard Reduction Gear & Electric Motors
  • In Auto mode, Whenever Main motor takes more amp load, Feeding Conveyor and Kupy will stop and auto start.
  • Heavy duty body plate and Load wheels.
  • Precesion Engineering & zero load roucing and testing runout at workshop.
